Description

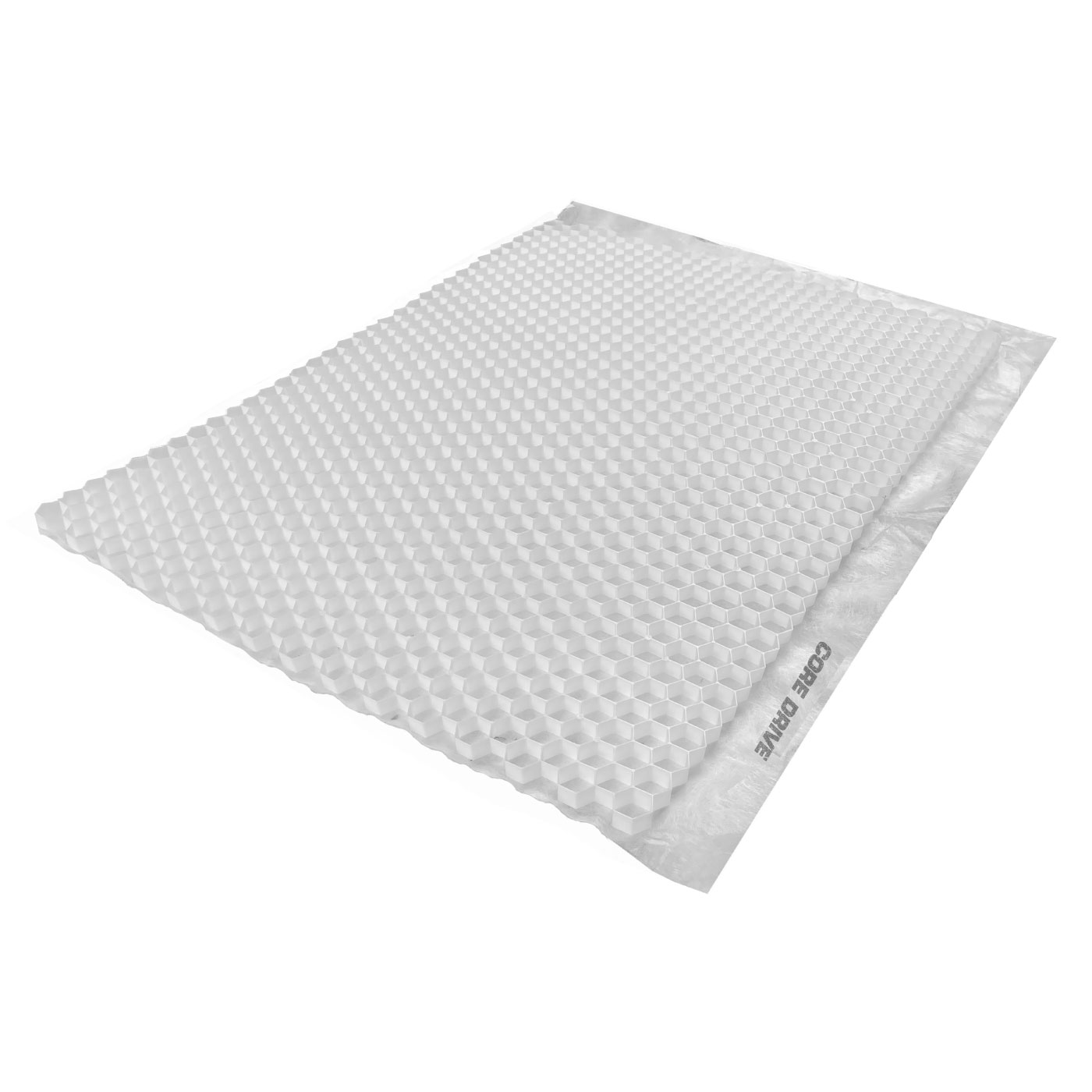

Core Drive 40-30 Gravel Stabiliser Grid White 1600 x 1200 x 30mm (minimum quantity 36) (Delivery up to 3 working days.)

The Core drive is most frequently specified for flat domestic driveways with a gradient of up to 10% (1 in 10), designed for angular aggregates up to 16mm. The high density polyethylene material means is durable and flexible making it ideal for stabilising gravel and tolerating various traffic types.

The 40-30 poses as a good option if you’re looking for a really simple driveway grid that can be laid quickly and left to do its job as a gravel stabiliser. For areas that require simple parking, this is a great option. Also the most cost-effective of the range, it’s certainly a good choice for those who are looking to install a stabiliser with a budget in mind.

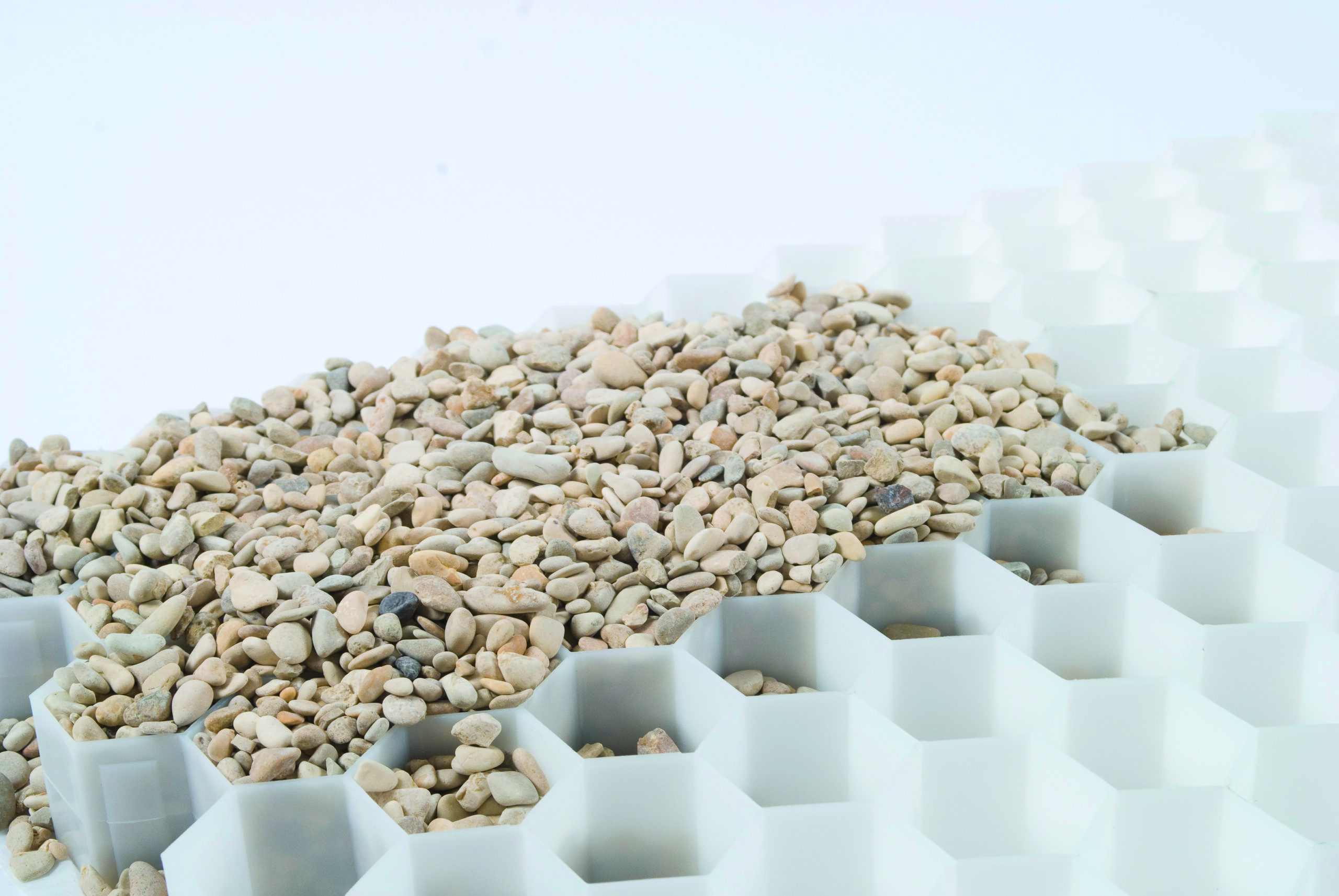

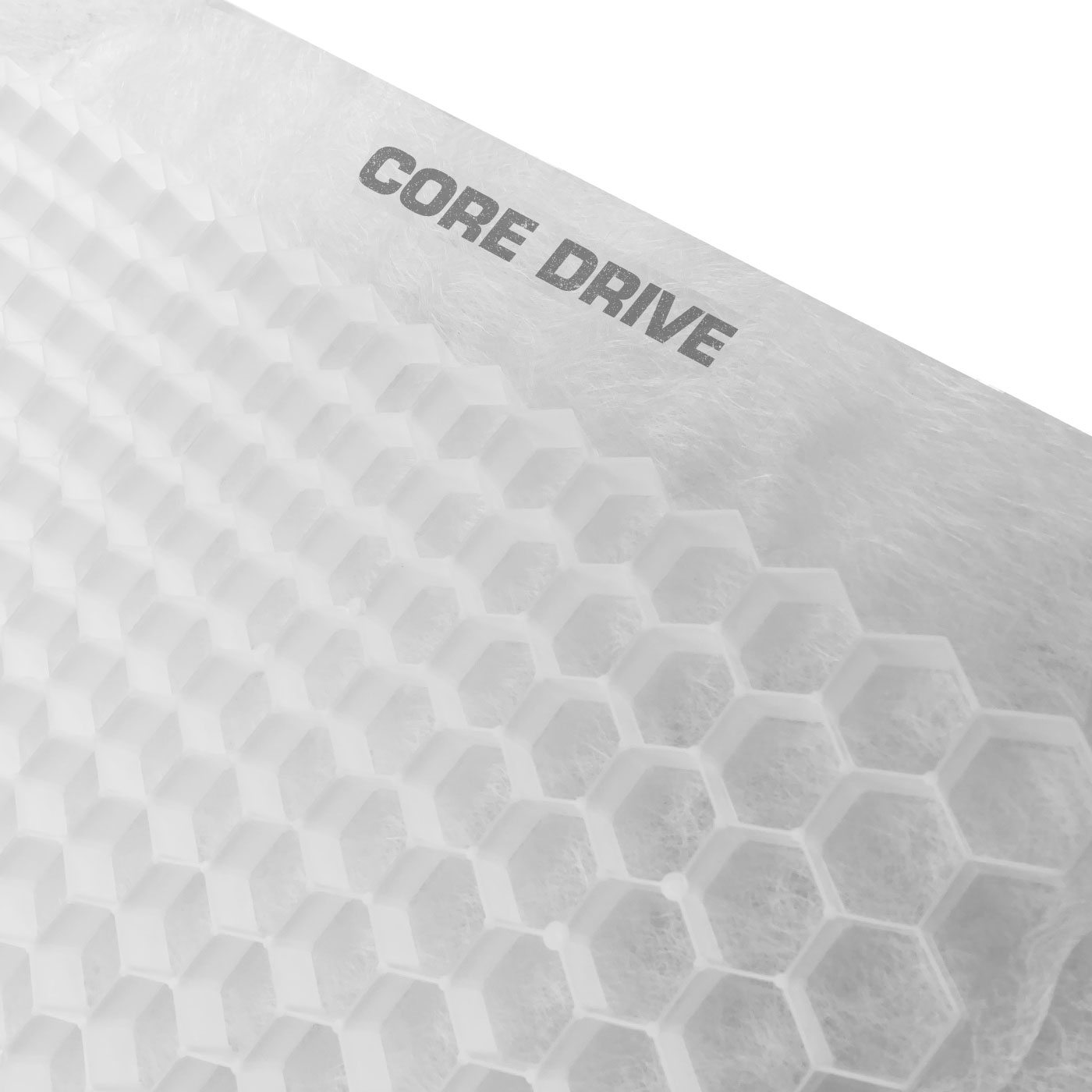

The unique manufacturing technique enables us to heat weld a high quality geotextile membrane to the underside of every panel. This heat weld attaches the membrane firmly to the honeycomb structure and creates a tray for the gravel to sit in, preventing the gravel from migrating under the cell wall.

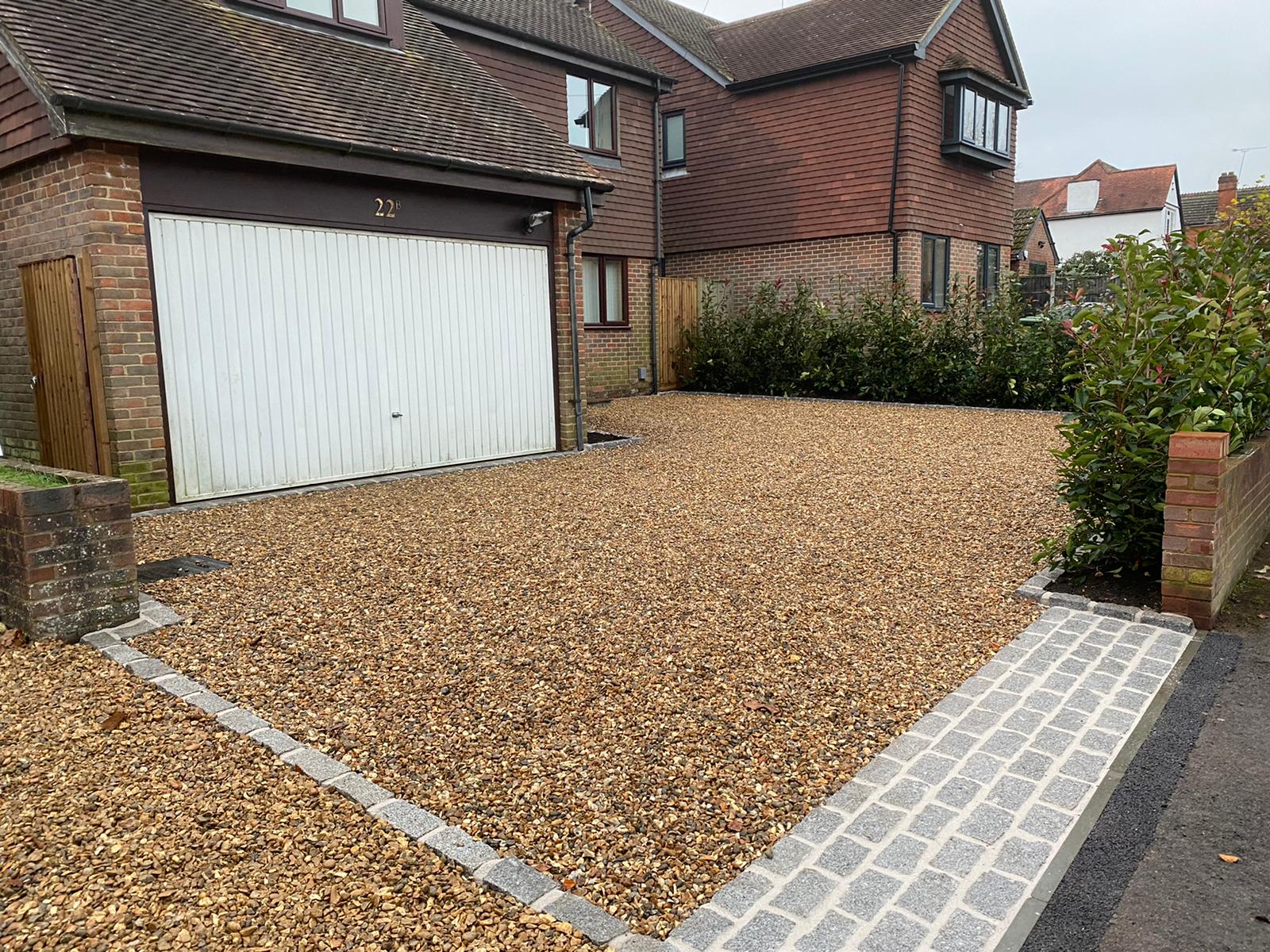

Core Drive can be installed as a new porous driveway surface with compacted gravel with minimal preparation.

Technical Specification

Material:  High Density Polyethylene

Sheet Size:  (1600 x 1200mm) 1.92m2

Cell Wall Thickness:  2mm

Aggregate Coverage:  16-18m2 per tonne

Depth of Cells: 30mm (width 40mm)

Membrane: Attached 50gsm non- woven

Aggregate Size: Up to 16mm angular

Applications and Benefits

• Sloping Driveway (up to 1 in 10)
• Paths, patios and walkways
• Summer Houses
• Disabled Friendly Access Route
• DDA Compliant
• Eco-Friendly
• Low Cost
• Line Markings
• No Weeds
• Easy Install
• Stabilises Gravel
• Strong
• SUDS Compliant
